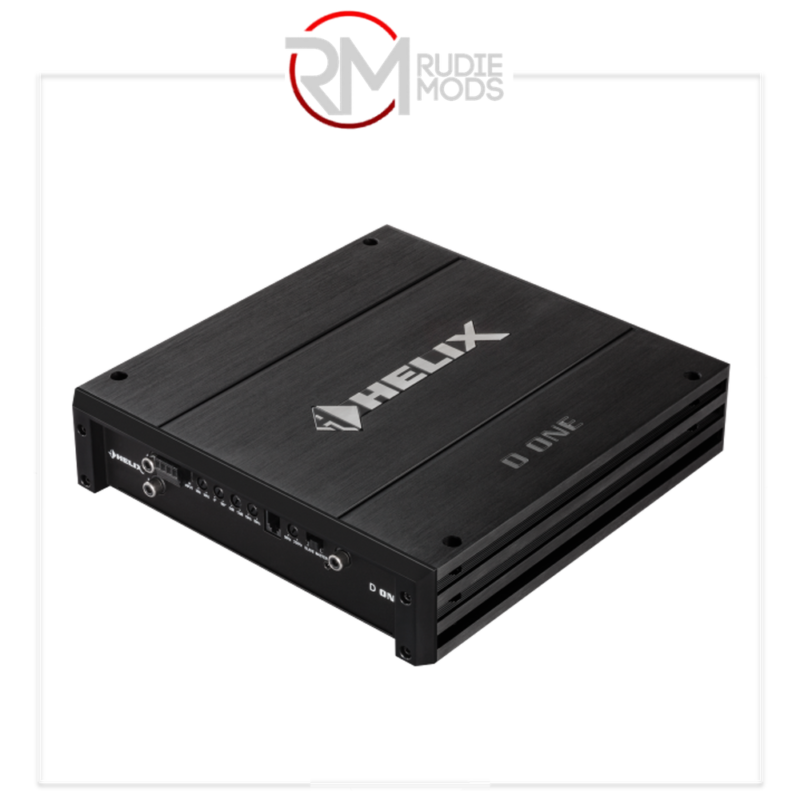

HELIX 1-Channel Subwoofer Amplifier with Integrated Active Crossover

HELIX D ONE

The new entry into the HELIX world! The amplifiers of the D series are solely modest with respect to pricing. Everything else is thoroughly pure HELIX quality without any compromises. Loads of power, excellent measurement data and a whole bunch of features ensure a pristine and crispy sound experience!

Absolutely nothing has been missed for powerful bass reproduction - the active crossover with subsonic filter, the lowpass filter, phase control and bass boost are equally as self-evident as the intelligent high-level input that incorporates Audiotec Fischer´s proprietary ADEP circuit. Not to mention the cable remote control for the volume that is included in the delivery.
Thanks to its 1-Ohm stability the D ONE is every else but choosy when selecting an appropriate subwoofer. If you still think that the power output isn't sufficient, then simply combine two devices to one single powerhouse - the TwinPower Link makes it possible.

The elegant design not only states right from the beginning of the amp's heritage but also allows easy integration into your car thanks to its compact dimensions. Get your car "bass-tuned" and simply have fun!



• 2-channel high- and lowlevel input
• Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
• Fully active crossover with subsonic, lowpass, bass boost and phase
• TwinPower Link for connecting two amplifiers in bridged mode
• Extremely stable MOSFET power supply
• Cable remote control for volume adjustment
• Highlevel input sensitivity up to 14 Volts max.
• SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
• Massive aluminium heatsink for best cooling conditions



Special features:

Smart high-level input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appears - but not with the D ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Output power RMS / max.	Normal operation  (One amplifier)	TwinPower Link  (Two amplifiers)
- @ 4 Ohms	1 x 200 / 400 Watts	1 x 645 / 1,290 Watts
- @ 2 Ohms	1 x 340 / 680 Watts	1 x 910 / 1,820 Watts
- @ 1 Ohm	1 x 530 / 1,060 Watts	-
- bridged @ 4 Ohms	-
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 660 Watts RMS @ 1 Ohm
Amplifier technology	Class D
Inputs	2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input
Input sensitivity	RCA / Cinch 0.5 - 6 Volts Highlevel 1 - 14 Volts
Input impedance RCA / Cinch	30 kOhms
Input impedance highlevel	12 Ohms
Outputs	1 x Speaker output
Output voltage RCA / Cinch	-
Signal converter for digital input	-
Frequency response	10 Hz - 250 Hz
Bass boost	0 - 12 dB / 45 Hz
Highpass	-
Lowpass	50 Hz - 250 Hz adjustable
Bandpass	10 Hz - 250 Hz adjustable
Subsonic	10 Hz - 50 Hz adjustable
Phase	0 - 180° adjustable
Slope high- / lowpass	-
Slope subsonic / lowpass	12 dB/Oct.
Signal-to-noise ratio digital input	-
Signal-to-noise ratio analog input	95 dB (A-weighted)
Distortion (THD)	0.25 %
Damping factor	100
Operating voltage	9.6 - 16 Volts
Idle current	1000 mA
Fuse	2 x 30 A Maxi-fuse (AP
